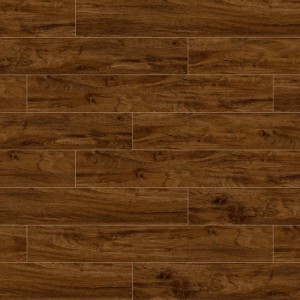

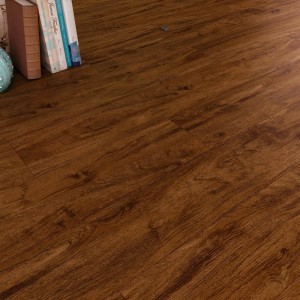

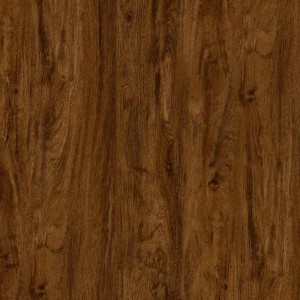

Honey Brown SPC Hard Core Flooring
Description:
Item：JSD55
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
The TopJoy Honey Brown SPC Hard Core vinyl flooring with a tough, sturdy, rigid core，which allows you to install your vinyl floor in areas you wouldn’t normally be able to.
TopJoy new rigid plank technology helps to eliminate ripples and waves that are often caused by uneven subfloors. You get the tough, perfect performance and waterproof floors with the low cost, which give your home a beautiful look.
This JSD55 design honey brown is one of the most classic designs that are suitable for both residential and commercial settings. It vividly mimics natural wood at a lower price while has better waterproof property and dimensional stability than wood flooring.
SPC flooring is the most durable vinyl flooring on the market.
Made of limestone powder and polyvinyl chloride, the flooring is super tough and hard that it can withstand the highest-traffic commercial environments, while in contrast traditional luxury vinyl is known for being flexible and less durable. It’s also a perfect choice for busy households due to its durability and thus ultra-scratch and stain resistance. You may use a damp mop to clean your floor. Sweep or vacuum your floor to remove any dirt or grit particle and then use a damp mop along with a softer floor cleaner.
The stone polymer composite makes that core layer almost indestructible, hiding the imperfections of the subfloor. Therefore it can also be installed over almost any existing hard floors.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
5.5mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.3mm. (12 Mil.) |
|
Width |
7.25” (184mm.) |
|
Length |
36” (914mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
