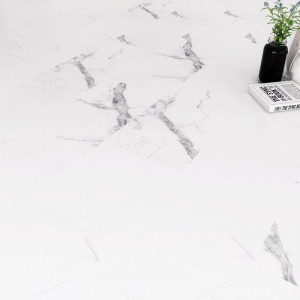

Popular Marble Color Rigid Core Vinyl Tile
Description:
Item：TYM 104
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：12” X 24”/ 12” X 12”/ Customization
The rigid core vinyl tile offers you a wide range of flooring as it comes in different sizes and versatile designs. It is available in a variety of colors. Your property will keep free from any kind of dirt as the rigid core vinyl flooring will percolate less dust and dirt and you don’t need to clean the floors very often. They are water-resistant so that they can be used in the bathrooms and the kitchens.
Give you real marbles look for any room in your property, at home or in the office! This Rigid core vinyl flooring has a beautiful realistic marble style. The Rigid core vinyl floors have been one of the top trends in flooring for both commercial and residential properties for many different reasons. The versatility of rigid core vinyl is one of the main reasons that it is so common in homes and offices. The stylish marble tones will complement your home. This new generation vinyl floor is made with an SPC core, a combination of stone and plastic composite, that gives the floor extra stability and a sturdy feel. This floor features a premium attached underlay that adds comfort underfoot. Every wise property owner should take advantage of Rigid core vinyl flooring to update their room or offices with the latest trending flooring.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.3mm. (12 Mil.) |
|
Width |
12” (305mm.) |
|
Length |
24” (610mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
