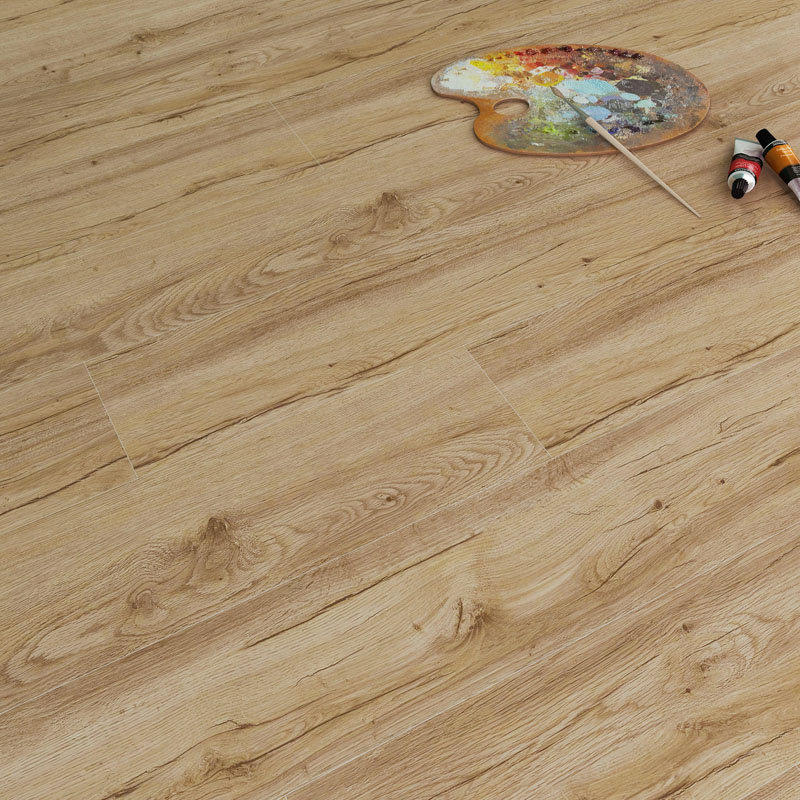

Vinyl Plank-Great Choice for DIYers
Description:
Item：JSD40
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
SPC rigid core is a great substitute for traditional luxury vinyl plank or laminate flooring.The extruded rigid core ensures its high dimensional stability; it will not expand or contract under normal conditions. With the patented UNILIN interlocking system allowing for quick installations, it’s a great choice for DIY homeowners.
Flooring installation has long been a shortcoming and pain spot for this industry. A large sum of money has been paid to subcontractors and installers by thousands of millions of households which income may not so much be considered as decency. In developed countries, such as the US, the installing charge per square feet may be equivalent in the amount of the flooring cost of the same size.
Our SPC rigid core vinyl plant is a great choice for DIYers of homeowners, thanks to its patented UNILIN interlocking system, which is allowing for quick installations.
The extruded rigid core ensures its high dimensional stability; it will not expand or contract under normal conditions. With the help of an Intelligence display machine and floor size calculator as well as installation manual and video, even a house-wife can turn herself into expertise and do all the jobs.
Indeed, it is a great choice for all DIYers!
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
6.5mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.5mm. (20 Mil.) |
|
Width |
7.25” (184mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
