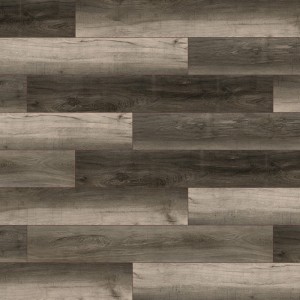

Wood Pattern SPC flooring Tile
Description:
Item：JSD07
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
SPC flooring tile have wood pattern, art pattern with DIY.
We should be sure to understand the SPC flooring installation of Unilin click systems. So we can easy install the SPC flooring by ourselves.
Most of people love nature and are huge fans of wooden flooring when comes to decorate their housings and apartments. But with the accelerated global warming and over deforestation, people start to realize that natural wood resource is not infinite, particularly those scarce ones. At TopJoy designs flooring, we have Wood Pattern SPC flooring Tile just like how you would like natural wood floors to look. From shades and species to grain patterns and textures of real hardwood, SPC flooring Tile spectacularly heightens the realism of having natural wood floors of your home.
Moreover, thanks to modem digital technology, TOPJOY Wood Pattern SPC flooring Tile looks real and natural with its deep Emboss In Register (ERI) in surface and are having over 1000 patterns available for choose. We are hoping our Wood Pattern SPC flooring Tile brings nature into your space, making it biophilic and eco-friendly. In such space, people would experience enhanced creativity and feel more restoration.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
8mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.7mm. (28 Mil.) |
|
Width |
6” (152mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
